Emergency MR-AX Odor Gas Detector Can Identify The Type Of Odor Gas Manufacturer, Brand
1 / 1

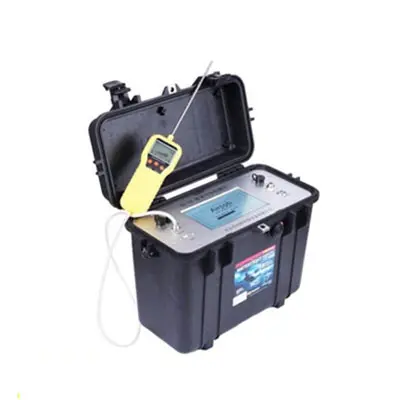

Emergency MR-AX Odor Gas Detector Can Identify The Type Of Odor Gas Manufacturer, Brand

Emergency MR-AX Odor Gas Detector Can Identify The Type Of Odor Gas Manufacturer, Brand

MR-AX is a detector that uses electrochemistry, photoionization (PID), semiconductor sensor array, and pattern recognition technology.

Optional functions include simultaneous uploading of monitoring data, viewing real-time data on mobile APP, alarm data, and sending text messages. It also adopts a 4-wire high-precision resistive touch screen, allowing operators to conveniently view and maintain data on site. MR-AX can be used online, Portable dual-mode use, built-in lithium battery, can be used continuously for 8 to 16 hours in case of power outage.

Send Inquiry

Product Description

Main Features

  • Using three different principle sensors to form an array sensor group, ensuring faster response time and stronger anti-interference performance.
  • Self-created core algorithm with integrated temperature and zero point compensation.
  • Built-in high-precision constant-current sampling pump for large monitoring range and short response time.
  • PELICAN protective box design, featuring IP65 protection grade (rainproof, dustproof, and salt spray proof).
  • Advanced pattern recognition technology to quickly and accurately determine the odor index.
  • Compact and portable design, suitable for handheld operation or single shoulder strap use.

Application Areas

  • Sewage treatment plant inspection
  • Landfill plant inspection
  • Chemical plant emissions testing
  • Odor gas detection in rivers
  • Industrial park emission testing
  • Food processing plant emissions testing
  • Detection of sites with unknown odors

Monitoring Parameters

Detection Principle Electrochemistry, Photoionization (PID), Semiconductors
Sampling Method Pump suction
Measuring Range Odor level: 0~70
Ammonia NH₃: (0~100)ppm
Hydrogen sulfide H₂S: (0~100)ppm
Methyl mercaptan CH₄S: (0~20)ppm
VOCs: (0~50)ppm, (0~6000)ppm optional
Resolution Odor level: 5
NH₃: 0.1ppm
H₂S: 0.1ppm
CH₄S: 0.1ppm
VOCs: 5ppb, 100ppb optional
Error ≤ ±5%
Working Power Supply 110VAC~240VAC, built-in lithium battery (8 hours continuous work, expandable)
Power Consumption 15W
Output Signal USB, RS232, GPRS, RS485, network port, DIDO, etc.
Response Time T90 < 15s (NH₃ < 60s)
Display Method 800X480 LCD 7-inch touch screen
Ambient Temperature -20℃ ~ +50℃
Environment Humidity 0~95%RH (no condensation)
Environmental Pressure 65kPa ~ 115kPa
Dimensions 420 x 200 x 350 mm (L x W x H)
Weight 7Kg

Frequently Asked Questions

Q: What sensor technology does the device use for odor monitoring?
A: The device utilizes an array of three different sensor principles: Electrochemical, Photoionization (PID), and Semiconductors, combined with a self-created core algorithm for high precision.
Q: Is this device suitable for outdoor or harsh environments?
A: Yes, it is designed with a PELICAN protective box rated at IP65, making it resistant to rain, dust, and salt spray.
Q: How long can the device operate on battery power?
A: The built-in lithium battery supports up to 8 hours of continuous operation and the capacity can be expanded based on requirements.
Q: What is the typical response time for gas detection?
A: The device features a rapid response time of T90 < 15 seconds for most parameters, while Ammonia (NH₃) is detected within 60 seconds.
Q: How can I export the data from the monitoring sessions?
A: The device supports multiple output interfaces including USB, RS232, RS485, GPRS, and network ports for versatile data management.
Q: Is the equipment easy to transport for field testing?
A: Absolutely. It weighs only 7kg and features a small form factor that can be handheld or carried using a single shoulder strap.
