MR-ACT  remote volcanic gas monitoring system enables long-range gas detection up to 5 km radius, performing qualitative identification and dynamic quantitative inversion of toxic, hazardous, and chemical gases. It delivers:

  • Real-time detection of gas species
  • Dynamic concentration mapping with spatial-temporal distribution
  • Gas plume diffusion tracking (direction & coverage)
  • Rapid large-area scanning for source localization

This system can be used for volcanic eruption gas monitoring: Monitor toxic and harmful gases produced during volcanic eruptions, such as sulfur dioxide(SO2), hydrogen sulfide(H2S), hydrogen chloride(HCl), methane(CH4), etc.

The main advantages of MR-ACT system are:

  • Ultra-Fast Hyperspectral Imaging
  • Military-Grade Robustness
  • Vibration-resistant design for harsh environments
  • AI-Powered Visual Interface
  • Real-time gas plume visualization
  • One-click threat prioritization
  • >5 km Standoff Detection
  • Multi-Scanning Modes
  • Point monitoring | 360° panoramic scan | Custom geo-fencing
  • HgCdTe (MCT) Detector
  • Thermal sensitivity:≤25 mK (NETD)
Send Inquiry

Product Description

⚙️
Fits For Models & Key Features
◈
Passive, non-contact long-distance measurement, with a measurement diameter of up to 10 kilometers.
◈
Automatic and real-time analysis and identification of up to hundreds of gas types.
◈
Using mercury cadmium telluride detector, the noise equivalent temperature difference is ≤25mK.
◈
High spectral collection rate and high spectral resolution.
◈
Multiple working modes: fixed-point, 360° all-round, and customized area detection.
◈
Gimbal with servo motor design for high turning accuracy and controllability.
◈
Electronic slip ring design for 360° infinite rotation scanning.
◈
Strong vibration resistance, suitable for monitoring while driving in vehicle conditions.
◈
Wide operating temperature range from -40℃ to 65℃ with high reliability.
◈
Protection grade IP66, reliable operation during heavy rain without extra shelter.
◈
Small size, light weight, and highly maneuverable for quick deployment.
◈
Detection window made of ZnSe material for optimal infrared light transmission.
📊
Technical Indicators
Measurable gas Petrochemical: methanol, ethanol, acetic acid, aniline, styrene, etc.
Fire protection: AC, acetone, CS2, nitric acid, hydrazine, benzene, etc.
Other chemicals: hydrazine, ASH3, H2S, NF3, HCL, SO2, etc.
Other poisonous gases: special poisonous gases.
More than 400 kinds of gases can be measured.
Detector type Cooled mercury cadmium telluride detector
Spectral range 8~12μm
Spectral resolution Better than 1cm-1
Spectral acquisition rate 20 spectra/second (Δσ≤ 1 cm-1, double-sided interference pattern)
Camera resolution 640 x 512 pixels (night vision infrared)
Voltage/power consumption (110~230) VAC / < 120 W
Installation method Fixed, portable, vehicle-mounted
Dimensions 380×270×500mm (length×width×height)
Weight 28Kg
🖼️
Scenario Application

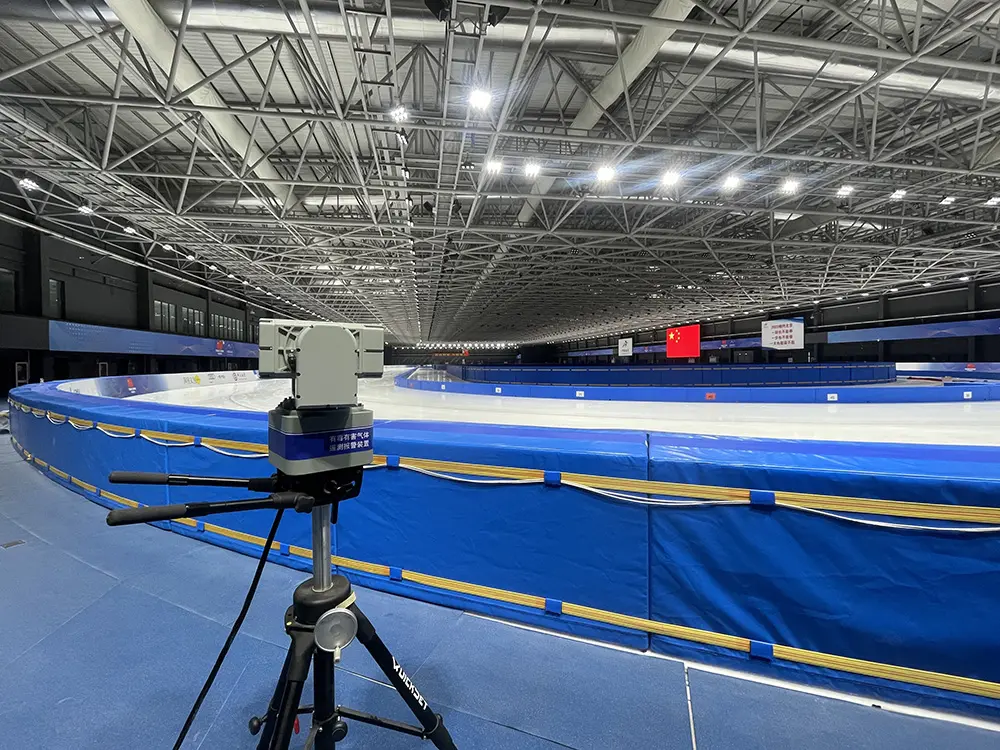

Venue alert
Petroleum telemetry
❓
Frequently Asked Questions
What is the maximum detection range of this equipment?
The equipment supports passive, non-contact long-distance measurement with an actual measurement diameter of up to 10 kilometers.
How many types of gases can the system identify?
The system can automatically analyze and identify more than 400 types of gases in real-time, including petrochemicals, fire protection chemicals, and various poisonous gases.
Is the device suitable for outdoor use in extreme weather?
Yes, it has a protection grade of IP66 and can operate reliably in heavy rain without a shed. It also functions in temperatures ranging from -40℃ to 65℃.
Can it be installed on a moving vehicle?
Absolutely. The equipment is designed with strong vibration resistance, specifically meeting vehicle use conditions for monitoring while driving.
What kind of rotation and scanning capabilities does it have?
It features a servo motor gimbal for high accuracy and an electronic slip ring design that allows for 360° infinite rotation scanning.
What material is used for the infrared detection window?
The detection window is made of high-quality ZnSe (Zinc Selenide) material, which ensures excellent transmission of infrared light.
